Clamp Butterfly Valve
Regular price
$42.60 USD
Sale price
$42.60 USD
Regular price
-
Estimated Delivery(Non customized):Dec 27 - Dec 31
-
Free Shipping: Distillers and accessories below 100L/26Gal
The following content is the details page.
The content may overlap with the main image.
Product description
Shipping & Return

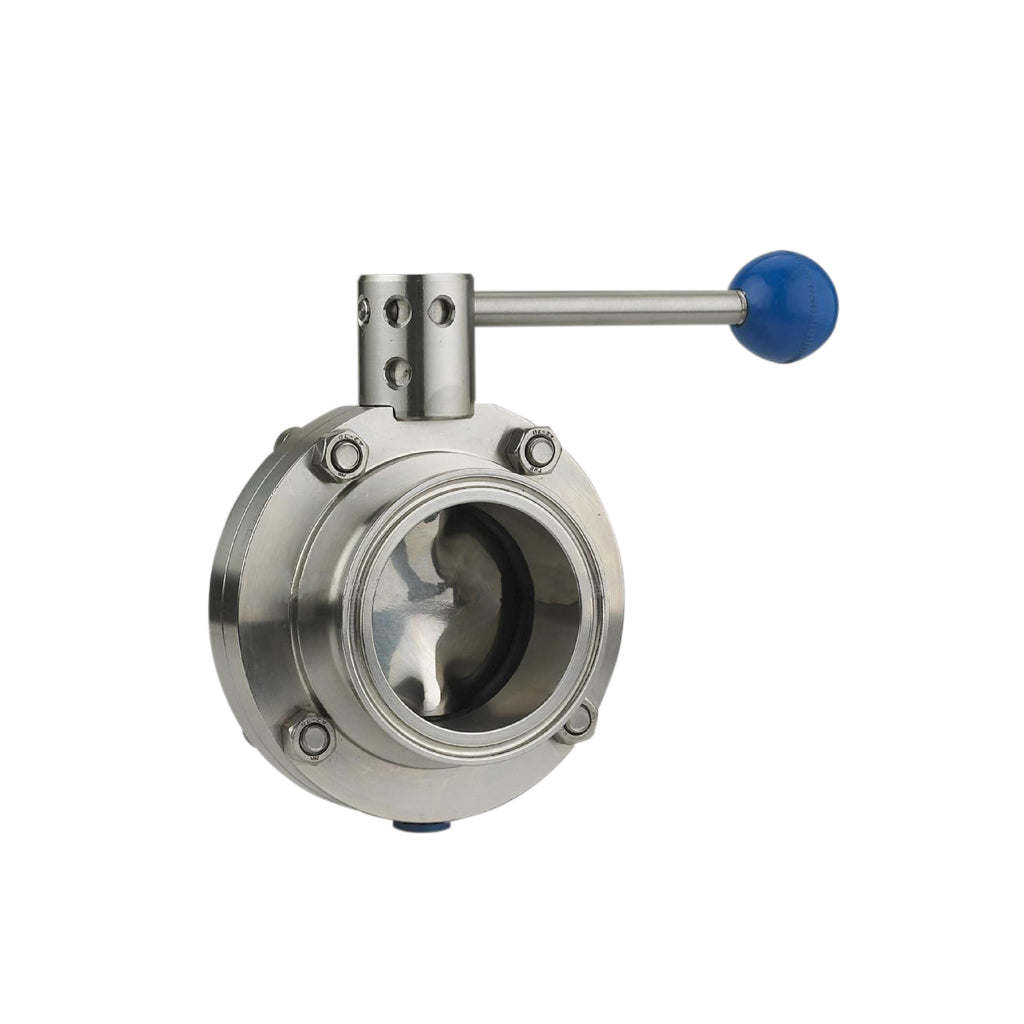

This Clamp Butterfly Valve is used to control the fluid. It's suitable for food and beverage proccessing application.
With pulling handle, you can adjust it by 45 and 90 degrees. Easy to assemble with tri clamp.
Note there will be 3 different types of seat material (Silicone/Viton/EPDM). Please choose one when you order.
Don't forget to buy the gasket.:)
| Material: 304 Stainless Steel | Product Type: Clamp Butterfly Valve |
| Specification: 3A | End Type: Tri Clamp |
 |
H | D | D1 | L | L1 | |
| 1" | 2.40 | 2 | 3.10 | 2.60 | 5.35 | |
| 1 1/2" | 2.53 | 2 | 3.54 | 2.76 | 5.35 | |
| 2 | 2.93 | 2.52 | 4.33 | 3.00 | 5.35 | |
| 2 1/2" | 3.06 | 3.05 | 4.53 | 3.31 | 5.35 | |
| 3" | 3.32 | 3 | 5.04 | 2.28 | 6.42 | |
| 4" | 4 | 4 | 6.06 | 2.52 | 6.42 |
